Introduction

This automatic PCB router machine is a mini automatic router machine, adopts desktop type, using 3 axis driven system, customzied the PCB fixing fixtures, manual load and unload the PCB for automatic depaneling,it's a easy and cost-effective PCB router machine.

PCB (Printed Circuit Board) router, also known as PCB milling machine, is a machine specially used to manufacture printed circuit boards. They play a vital role in electronics manufacturing, used in operations such as removing unwanted parts of multi-layer PCBs, creating circuit traces, opening holes, and customizing shapes.
PCB routers play the following important roles in the circuit board manufacturing process: removing excess material, creating circuit traces, opening holes, and customizing shapes
PCB routers are widely used in electronic manufacturing and circuit board manufacturing, including but not limited to the following application areas: electronic equipment manufacturing, communication equipment, industrial control systems, medical equipment, aerospace and defense.

Working principle:
The equipment uses a high-speed rotating tool to cut the PCB board along the predefined dividing line
The position and cutting depth of the tool are precisely controlled by the computer control system
After cutting, the single PCB board can be automatically ejected to complete the splitting process

Main components:
High-speed rotating tool assembly
Precise position control system
Conveyor belt or tray for carrying PCB boards
Human-machine interface and control electronic board

Performance parameters:
Maximum cutting size: generally around 300mm x 400mm
Cutting accuracy: usually up to ±0.1mm
Cutting speed: 10-20 PCB boards can be split per minute
Applicable PCB thickness: usually 0.4mm-2.0mm

Main advantages:
Fully automated operation, greatly improving efficiency
High-precision cutting, protecting the delicate circuits on the PCB board
Miniature design, suitable for compact production environment
Easy to operate and maintain, reducing labor costs
Safe and reliable, isolating flying debris

Main features

1, 3 axis driven system, using step motor.
2, Flexible desktop type, easy to move and adjust.
3, Equipped with the dust-collector, keep the operation table clean.
4, When depaneling different, just replace the fixture and import different program.

5, All the guide and screw lead screw are dust-proof, make sure the machine operating accuracy.

6, Suitable for separating FPC board, aluminum board, FR4,etc.

Sepcfication

Machine details

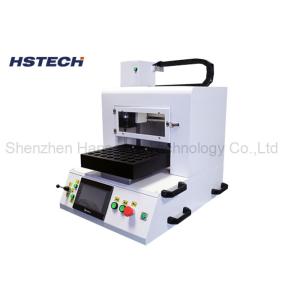

Single Platform Desktop PCB Router Machine Mini PCB Depaneling Router With Stepper Motor Images
